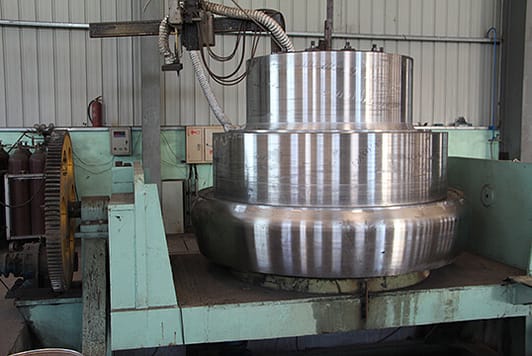

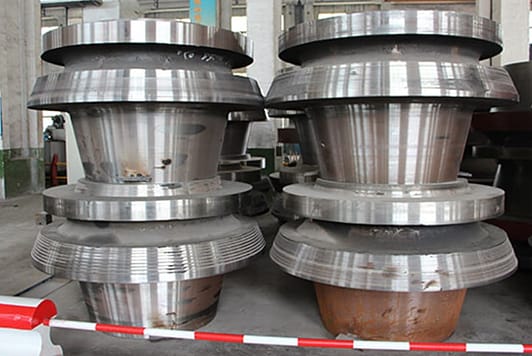

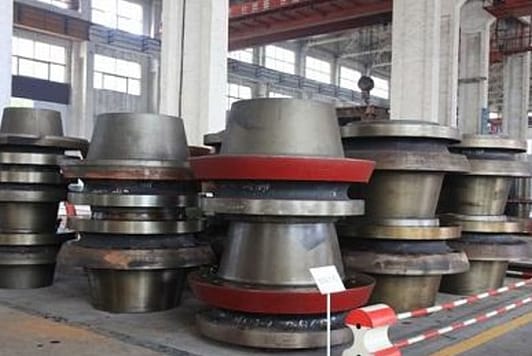

Wheel Hub

Wheel Hub of vertical mill

Weight :5-30 t

Material: ZG270-500, etc.

Application:Cement/slag/GGBS/coal/raw vertical roller mill

Customizable: Yes

MOQ:1 Piece/Pieces castings

Place of origin: Henan, China(Mainland)

Contact us for more information on how this product can help you with your unique requirements.
image description

Wheel hub is the core part of grinding roller assembly. The roller cover is fixed on the hub, and the hub is installed on roller shaft, which forms the grinding roller assembly. Generally speaking, roller shell and wheel hub is connected together in the tapered structure, which is convenient for easy maintenance and disassembly.

Standard Specifications for Cast Steel ZG270-500:

Country Standard Grade
United Kingdom BS3100 A2
USA AISI/SAE UNS J04000
Germany DIN 1681 GS-60
Japan JIS-G5101 SC480
International ISO 3755 270-480

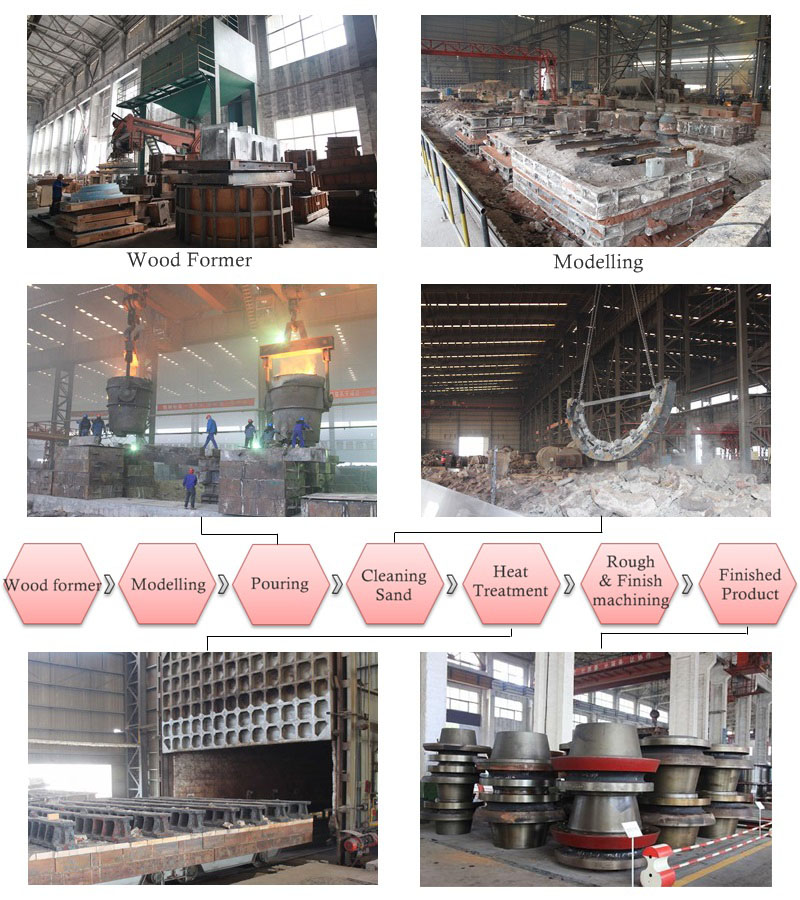

Production Process

Wheel Hub process

Why choose us?

Advantages

  • The Wheel hub of grinding roller produced by SYMMEN METAL Casting has good wear-resistance, and are hard to break.
  • We always insist on this principle: before delivery, the professional inspectors carry out many times NDT tests on the stress surface of wheel hub. No product with bad quality can leave factory.

Quality Assurance

The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:

  • Manufacturer test certificates according to DIN EN 10.204 & 3.1 including chemical composition, mechanical properties and non-destructive examination;
  • Dimensional check supported with a “as-built“ sketch;
  • Record of the heat treatment chart
